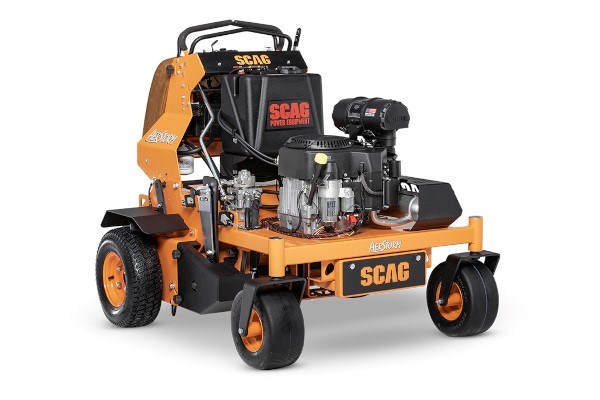

Scag AS30-23CV-DS
Features
Quick and Simple Aeration
EASY DEPTH ADJUSTMENT AND ENGAGEMENT
Featuring a simple and intuitive depth selection pin with easy-grip rubber knob, select aerating depths of 1” to 4” in 1/2” increments to meet the needs of each specific property. Hydraulic tine engagement, via a convenient foot-activated switch, allows you to keep your hands on the steering controls for maximum productivity and safety. Plus, a tine activation switch on the instrument panel prevents accidental engagement or disengagement while working or transporting.
Drive Control Levers
ACCESSIBLE CONTROLS
Incredibly easy to use, its ergonomic drive control levers make it a cinch to maneuver and allows you to get more done.
Intuitive Instrument Panel
STAY IN THE LOOP
A full-featured and easy-to-view instrument panel keeps you informed of exactly what you need to know.
Operator Platform
EXPERIENCE AN UNMATCHED, ULTRA-COMFORTABLE RIDE
A spacious operator platform featuring suspension and a padded, bolstered cushion ensures a smooth, comfortable ride all day long.
Ease of Maintenance
MORE UPTIME
Removable cushion and lower panel allow quick and easy service access to hydro tank and tines.
Heavy-Duty Frame
SOLID DESIGN FOR YEARS OF DEPENDABLE SERVICE
Heavy-duty, durable construction ensures years of dependable service and worry-free productivity.
Heavy-Duty Frame
SOLID DESIGN FOR YEARS OF DEPENDABLE SERVICE
Heavy-duty, durable construction ensures years of dependable service and worry-free productivity.
Specs
AERSTORM MODEL
| Model | AS30-23CV-DS |
| Description | Stand-On Aerator with Drop Seeder, 30" Tine Width – Kohler® Command PRO® 23 HP |
AERATOR SPECIFICATIONS
| Specification | AerStorm |
| ENGINE SPECIFICATION | |
| General Type | Heavy-duty industrial/commercial |
| Brand | Kohler Command Pro |
| Model | CV732 |
| Horsepower | 23.5 HP @ 3600 RPM |
| Torque | 40.3 ft-lbs. (peak) |
| Type | 4 cycle gas, twin-cylinder, air-cooled, OHV, vertical shaft engine |
| Displacement | 747 cc (45.6 cubic inch) |
| Cylinders | 2 cast-iron sleeves |
| Governor | Mechanical type governor with variable speed control set at 3600 rpm (±100 rpm), idle set at 1800 rpm (±150 rpm) |
| Air Intake Group | Large capacity 2-stage canister air filter |
| Exhaust Group | Single. exhaust canister muffler |
| Fuel Pump Group | Integral fuel pump with inline fuel filter, internal fuel line vent; float feed; two barrel, adjustable idle, afterfire solenoid. |
| Oil Pump Group | Full pressure lube, with full-flow filter, 2 quart oil capacity |
| Starter/Electrical/Charging System | "12 volt ""maintenance-free"" sealed battery with alternator, solid state ignition with key start. 15 amp charging system, regulated." |
| ENGINE DECK | |
| Thickness | 1/4" steel |
| Fuel Tank | 5.5 gallon (20.8 liters) tank with molded-in cup holder |
| Drive Wheels/Tires | 18 x 6.5 - 8 four-ply pneumatic tubeless, radius edge |
| Caster Wheels | 13 x 6.5 - 6 Flat-Free (semi-pneumatic) |
| Brakes | Lever actuated linkage to brakes on both drive wheels |
| Operator Platform | Heavy gauge steel with extruded star pattern for no-slip footing. Dual adjustable suspension for operator comfort level preference. |
| Operator Comfort Pad | Large heavily-bolstered operator cushion can be easily removed without tools for access to hydraulics |
| DRIVE SYSTEM | |
| Type | Hydro drive with two variable displacement pumps and two cast-iron high-torque wheel motors for independent control of each drive wheel |
| Hydro Pumps | Two Hydro-Gear PG Series 10cc pumps with dump valves for movement without running engine; one cooling fan |
| Drive Wheel Motors | Two Parker TG 14.5 cu. inch cast-iron high torque wheel motors |
| Hydro Fluid Cooling Group | 3.0 qt. capacity cooling reservoir; uses SAE 20W50 fluid and 10 micron filter |
| Steering/Travel Control | Twin lever steering control with individual control to each wheel |
| Dump Valves | Allows for movement without engine running |
| Axles | 1.25" heavy-duty, straight motor shafts |
| Wire Harness | 14 and 16 gauge wire |
| Safety Group | Footplate-actuated operator presence system interlock to engine killFootplate-actuated operator presence system interlock to engine kill |
| Forward Speed Range | 0 up to 7.0 mph |
| Reverse Speed Range | 0 up to 3.0 |
| PRODUCT SPECIFICATIONS | |
| TYPE | Plug-style aeration. Mid/under-belly mount. |
| AERATING WIDTH | 30" |
| AERATING DEPTH/ADJUSTMENT | 1" to 4" in 1/2" increments. Simple and intuitive depth selection pin with easy-grip rubber knob. |
| TINES | 48 self-cleaning, replaceable, steel coring tines |
| TINE ACTIVATION & PRESSURE | Hydraulic tine engagement (raise and lower) via a foot-activated switch. Tine activation switch on the instrument panel prevents accidental engagement/disengagement while working or transporting. Adjustable hydraulic down-pressure helps to penetrate even the hardest and driest soils to ensure effective aeration performance in all conditions. |
PRODUCT DIMENSIONS
| PRODUCT SPECIFICATION | |
| LENGTH | 68.6" |
| WIDTH | 49.8" |
| HEIGHT | 51.2" |
**Specifications subject to change without notice. Actual ground speeds may vary. Accessories subject to availability.
