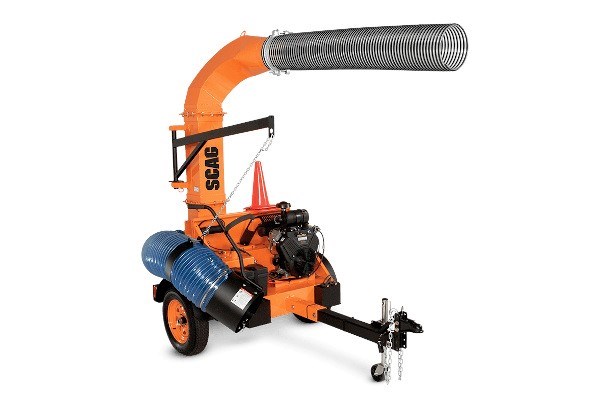

Scag TLB25-37CH

4-Blade Impeller

FABRICATED AND BALANCED, 25-INCH, 4-BLADE IMPELLER

Within the unit’s 10.5″-wide housing is a welded-steel impeller with 1/2″-thick steel blades. Dynamically balanced for reduced vibration, longer life and less stress on the engine, these loaders boast an effective, high-output (35BV = up to 6,781 CFM; 37CH = up to 6,909 CFM; 49KBD = up to 7,318 CFM), debris-reducing design.

Smart Construction and Convenient Serviceability

EASY ACCESS FOR WEAR PLATE AND IMPELLER SERVICE

1/4″-thick, bolt-in, replaceable wear liner extends service life. Removable rear-housing cover allows easy access to impeller and wear plates.

Locking Boom Arm and Intake Nozzle

SAFE AND CONVENIENT TRANSPORT

Transport lock safely secures the boom arm and hose when not in use; nylon bearing delivers smooth movement. A transport pin locks the nozzle to the loader to help protect the hose during transportation.

Ambidextrous Nozzle Handle

EASY HANDLING FROM EITHER SIDE: THE CHOICE IS YOURS

Padded, large-diameter handle is designed for increased leverage and easy maneuverability.

16" Steel Intake Nozzle

TAKE IT ALL IN

HUGE, replaceable intake nozzle makes debris pickup easy.

Adjustable Tongue and Hitch

FIT TO YOUR TRUCK – LONG OR SHORT, HIGH OR LOW

Choose from three different tongue lengths to best fit your specific application. A height-adjustable hitch gives the best fit your truck. A 2 5/16″ ball coupler comes standard on gas-powered units, but will accept a pintle hitch. Diesel-powered unit comes with standard pintle hitch, but will accept a 2 5/16″ ball coupler.

Built-In Tool Holder

KEEP YOUR RAKES, BROOMS AND SHOVELS WITHIN EASY REACH

Built-in, 3-hole tool holder with rubber rings protects handles from damage.

Large-Capacity Fuel Tank With Built-In Gauge

HOURS AND HOURS OF RUN TIME

High-capacity, 8.5-gallon, steel fuel tank with large filler neck for easy filling keeps you on the job. Built-in fuel gauge adds convenience and eliminates guesswork.

Ultra-Powerful Engine Options

HUGE POWER, UP TO 49 HP

Choose from a 35 hp Vanguard® BIG BLOCK™ or a 37 hp Kohler® Command PRO® EFI gasoline engine, or a 49 hp Kubota® diesel engine.
