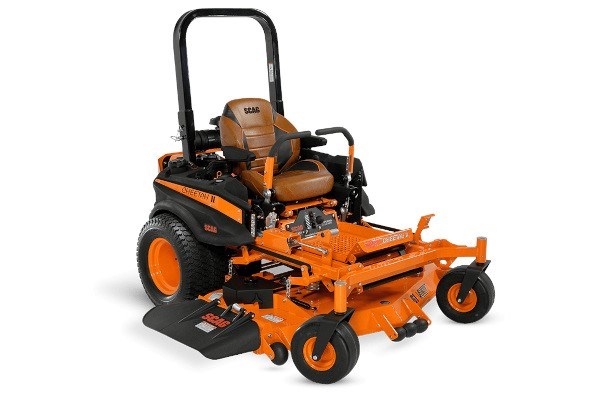

Scag SCZII-72V-40BV-EFI
Features
The envy of the neighborhood
52", 61" OR 72" CUTTING WIDTH
The envy of the industry, Velocity Plus™ decks deliver an amazing quality-of-cut and a wide, even discharge. This deck is equipped with Scag’s ultra-tough cast-iron spindles featuring tapered roller bearings and a top-mounted grease fitting with a relief valve to prevent over-greasing.
Driveshaft-Driven Cutter Decks
ANOTHER REASON THE TURF TIGER IS KING OF THE JUNGLE.
A driveshaft connects the engine to the deck, eliminating the long belt drive and increasing cutting-height range.
Heavy-Duty, Double-Tube Steel Main Frame
SOLID DESIGN FOR YEARS OF DEPENDABLE SERVICE
The Turf Tiger™ is ultra-strong and built for long life. It has a wide mower stance and extra-low center of gravity for ultimate stability and a replaceable front caster-wheel weldment.
Industrial-Grade Hydraulic System
SPEEDS UP TO 12 MPH
Dual Hydro-Gear pumps (16 cc) and Parker wheel motors (18 ci) deliver dependable power. Pump shock valves ensure reliability and long life. Cooling fans help maintain safe operating temperatures.
Auxiliary Hydraulic Oil Cooler
EFFICIENT OPERATION AND ADDED RELIABILITY
Standard-equipment oil cooler extends system life by keeping the hydraulic oil cooler. Cooler location utilizes the engine airflow to draw cool air through the cooling fins.
Command-Comfort Operator Station
THE TURF TIGER COMMAND-COMFORT OPERATOR STATION IS BUILT AROUND YOU.
Components include a torsion-spring suspension seat mounted on a 4-iso-mount system, Quick-Fit™ adjustable steering levers, and an adjustable deck-lift pedal.
Tiger Eye Advanced Monitoring System
KEEP A REAL-TIME "EYE" ON IMPORTANT SYSTEM FUNCTIONS
Depending on the mower model and engine selection, the Tiger Eye™ Advanced Monitoring System monitors a wide variety of systems in real-time, giving you valuable information in just a glance, right from the operator’s seat.
Huge 26" Drive Tires
ROLL FAST AND SMOOTH
Large, 6-ply drive tires deliver superior traction, a smooth ride and allow for easy curb-climbing capability.
Powerful and Efficient Engine Options
HUGE POWER, UP TO 40 HP
Choose from a Kawasaki®, or Briggs Vanguard™ engine; air-cooled or liquid-cooled; electronic fuel injection (EFI) or digital fuel injection (DFI) options. Diesel (Kubota) and propane (Kohler) options are also available.
Specs
| Model | Description |
| SCZII-72V-40BV-EFI | 72" Velocity Plus™ Cutter Deck, 40 HP Briggs Vanguard™ BIG BLOCK™ EFI – electronic fuel injection, air-cooled engine |
| Product Dimensions | |
| Length | 91"-97.5" |
| Width (chute down) | 83" |
| Width (chute in transport position) | 73" |
| Height (ROPS folded) | 49.5" |
| Height (ROPS up) | 67" |
| Weight | 1,399-1,427 lb |
| GENERAL | |
| Total Fuel Capacity | 13 gallons |
| Drive Tires | 24" x 12"-12" |
| Caster Tires | 13" x 6.5"-6" |
| Seat | 4-point iso-mounted mid-back mounted on operator-suspension platform |
| DRIVE SYSTEM | |
| Drive System Type | Hydro-Gear ZT5400 Transaxle. Two-Speed |
| Pumps | Internal Pump: 16 cc |
| Motors | Internal Motor: 21 cc |
| Forward Ground Speed | 16 mph (high-speed) 12 mph (low-speed) |
| Reverse Ground Speed | 8 mph (high-speed) 5 mph (low-speed) |
| Parking Brake | Foot-operated pedal |
| DECK | |
| Cutting Widths | 72" |
| Type | Velocity Plus™ |
| Cutting Height | 1.25" to 5" in .25" increments |
| Deck Lift | Adjustable foot-operated pedal |
| Construction | Tri-plate cutter deck constructed of 3 steel plates totaling nearly 1/2" of steel. Reinforcement plates at cutter deck spindles. |
| Spindles | Cast-iron housing with tapered roller bearings. |
| Blade Engagement | Ogura GT5 (350 ft lb) Adjustable air-gap for extended life. |
