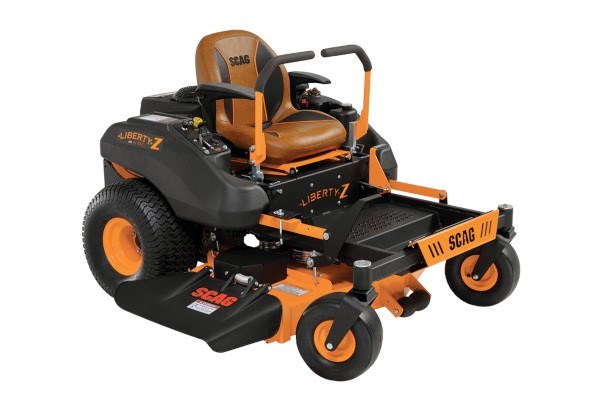

Scag SZL-48H-21FR
Features
Ogura PTO Clutch Brake
STRONG, ADJUSTABLE CLUTCH FOR LONG LIFE
The Ogura GT1 PTO Clutch Brake provides excellent starting and stopping power for the cutter deck, 74 ft. lb. of holding strength, and an adjustable air gap for long life.
Command perfection
DEEP, FABRICATED, AND WELDED CUTTER DECKS
Heavy-duty Hero Cutter Deck design and construction yield an excellent quality-of-cut. Deep design handles lots of grass at higher speeds. Heavy-duty, aluminum, sealed ball bearing, blade-drive spindles provide reliable performance season after season.
High-Strength Steel Frame
SOLID DESIGN FOR YEARS OF DEPENDABLE SERVICE
Tubular-steel main frame delivers unmatched strength and longevity.
Low-Maintenance Mower Design
MORE UPTIME
Fewer grease points increase operator convenience and ease-of-ownership.
Proven Transaxles
SPEEDS UP TO 7 MPH
The ZT drive systems’ dual hydro transaxles with all-metal gears and spin-on oil filters deliver smooth, solid power to the drive wheels (36″, 42″, 52″ and 61″ models). The 48″ model features proven Tuff Torq transaxles.
Contoured, Bolstered, High-Back Seat
RIDE IN COMFORT
This ultra-comfortable and adjustable (with tools) and contoured for improved comfort, and features armrests.
Easy Foot-Pedal Deck Lift
EASY UP, EASY DOWN
Foot-pedal cutter-deck lift is spring-assisted and makes raising the cutter deck smooth and easy.
Powerful and Efficient Engine Options
RELIABLE POWER, UP TO 24 HP
Choose from a Kawasaki® FR or Kohler® 7000 Series engine.
Specs
| Model | Description |
| SZL-48H-22KT | 48" Hero Cutter Deck, 22 HP Kohler® 7000 Series™ PRO – 725 cc displacement |
| Product Dimensions | |
| Length | 67.5" |
| Width (chute down) | 60.5" |
| Width (chute in transport position) | 49" |
| Height | 41" |
| Weight | 612 lb |
| GENERAL | |
| Total Fuel Capacity | 3.5 gallons (36" and 42") 5.5 gallons (48", 52" and 61") |
| Drive Tires | 20" x 8"-10" (36") 20" x 10"-8" (42", 48" and 52") 20" x 10"-10" (61") |
| Caster Tires | 11" x 4"-5" (36" and 42") 11" x 6"-5" (48", 52" and 61") |
| Seat | Padded with arm rests, adjustment forward and back (tools required) (no armrests on 36" and 42" models) |
| DRIVE SYSTEM | |
| Drive System Type | Hydro-Gear ZT2800 Transaxle (36", 42" and 52") Tuff Torq TZ450 Transaxle (48") Hydro-Gear ZT3100 Transaxle (61") |
| Pumps | Internal Pump: 10 cc |
| Motors | Internal Motor: 10cc (Tuff Torq), 16 cc (Hydro-Gear) |
| Forward Ground Speed | 7 mph |
| Reverse Ground Speed | 5 mph |
| Parking Brake | Hand lever |
| DECK | |
| Cutting Widths | 36", 42", 48", 52" and 61" |
| Type | Heavy-Duty Hero Cutter Deck |
| Cutting Height | 1.5" to 4.5" in .25" increments |
| Deck Lift | Foot-operated pedal |
| Construction | Dual-plate cutter deck constructed of 2 steel plates. Reinforcement plate at cutter deck spindles. |
| Spindles | Aluminum housing with sealed ball bearings. |
| Blade Engagement | Ogura GT1 (74 ft lb) - (36", 42", 48" and 52") Ogura GT2 (108 ft lb) - (61") Adjustable air-gap for extended life. |
Accessories and Attachments
2-BAG GRASS CATCHER
COMMERCIAL-GRADE FABRIC BAGS
The Scag® 2-Bag Grass Catcher allows you to quickly and conveniently collect grass clippings and leaves, delivering a picture-perfect, groomed lawn on all Scag Liberty® Z, Freedom Z® and Patriot™ mowers.
With a 7-bushel capacity and an 8″ discharge tube, this is a serious debris-catching system. Contact your Scag Dealer today to get your hands on this time- and labor-saving tool.
Fabric Bag Grass Catcher
HURRICANE MULCH SYSTEM
TAKE MULCHING TO A NEW LEVEL
The Hurricane Mulch System offers the same benefits of the Hurricane Plus™ Mulch System. Available on the following machines:
All Patriot™ decks.
All Freedom Z® decks.
All Liberty® Z decks.
36″ V-Ride™ II deck.
36″ SWZ Hydro-Drive deck.
All SWZT Hydro-Drive decks.
Mulch Plate
TIGER STRIPING AND LAWN PATTERN SYSTEMS
TAKE YOUR LAWN TO THE NEXT LEVEL
The patented Scag® Tiger Striper Lawn Striping System is the ultimate way to enhance the striping ability of your Scag. This lawn striper has unique features that allow you to turn the striping on and off, and remove the entire roller system without tools by pulling two “quick pins.” It is spring-loaded so it applies downward pressure onto the grass. This further enhances the stripe and allows the roller to contour to uneven terrain better than standard fixed rollers, even at high mowing and transport speeds.
Learn How Lawn Striping Works and How Lawn Patterns Are Made!
The entire lawn-striping system mounts behind the rear drive tires. The advantage to mounting the roller at the rear is that it is the last thing to contact the grass. The tires and cutter deck pass over the grass and as a final step, the roller intensifies and evens out the stripe.
*Tiger Striper shown is for Turf Tiger™ II, Cheetah II™ and Tiger Cat® II. Widths of the roller assembly and number of rollers will vary with mower model.
Light Kit
Trailer Hitch
Chrome Wheel Covers
Blade Buddy
Cutter Deck Transport Latch
