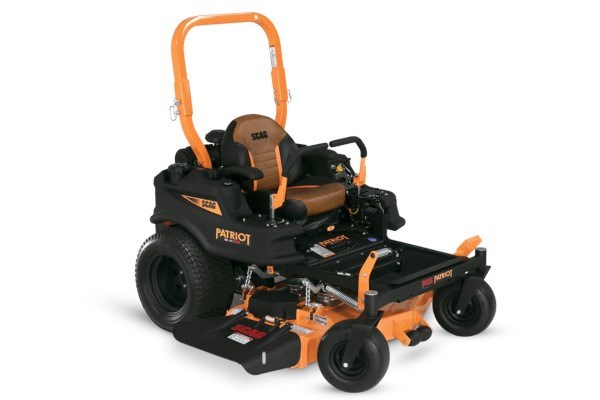

Scag SPZ-61H-25CV
Features
Ogura PTO Clutch Brake
STRONG, ADJUSTABLE CLUTCH FOR LONG LIFE
The Ogura GT2 PTO Clutch Brake provides excellent starting and stopping power for the cutter deck, 108 ft. lb. of holding strength, and an adjustable air gap for long life.
Command perfection
DEEP, FABRICATED, AND WELDED CUTTER DECKS
Heavy-duty Hero Cutter Deck design and construction yield an excellent quality-of-cut. Deep design handles lots of grass at higher speeds. Heavy-duty, aluminum, sealed ball bearing, blade-drive spindles provide reliable performance season after season.
High-Strength Steel Frame
SOLID DESIGN FOR YEARS OF DEPENDABLE SERVICE
Tubular-steel main frame delivers unmatched strength and longevity.
Hydro-Gear ZT-3100 / ZT-3400 Transaxles
SPEEDS UP TO 10 MPH (SPZ61) / 8.5 MPH (SPZ52)
The ZT drive systems’ dual hydro transaxles with all-metal gears and spin-on oil filters deliver smooth, solid power to the drive wheels. Large cooling fans keep temperatures low and extend component life.
Low-Maintenance Mower Design
MORE UPTIME
Fewer grease points increase operator convenience and ease-of-ownership.
Suspension Seat
RIDE IN COMFORT
The torsion-spring suspension seat adjusts to each operator’s weight, is contoured and features armrests, all to provide superior comfort.
Iso-Mounted Footplate
CRANK UP THE COMFORT
Pierced, extruded-steel footplate is rubber iso-mounted for enhanced comfort.
Foot-Pedal Parking Brake
STAY IN CONTROL
Foot-operated parking brake activates a disc-brake system, allowing the parking brake to be engaged without taking your hands off of the steering controls. Ausco disc brakes provide reliable performance.
Powerful and Efficient Engine Options
RELIABLE POWER, UP TO 26 HP
Choose from a Briggs Vanguard™, Kawasaki® FX or a Kohler® Command PRO® air-cooled, V-twin engine.
Specs
| Model | Description |
| SPZ-61H-25CV | 61" Hero Cutter Deck, 25 HP Kohler® Command PRO® |
| Product Dimensions | |
| Length | 79" |
| Width (chute down) | 73.5" |
| Width (chute in transport position) | 62" |
| Height (ROPS folded) | 47" |
| Height (ROPS up) | 61" |
| Weight | 952-956 lb |
| GENERAL | |
| Total Fuel Capacity | 6.5 gallons |
| Drive Tires | 22" x 10.5"-12" (52") 24" x 12"-12" (61") |
| Caster Tires | 13" x 6.5"-6" |
| Seat | Torsion-spring suspension seat |
| DRIVE SYSTEM | |
| Drive System Type | Hydro-Gear ZT3100 Transaxle (52") Hydro-Gear ZT3400 Transaxle (61") |
| Pumps | ZT3100 Internal Pump: 10 cc (52") ZT3400 Internal Pump: 12 cc (61") |
| Motors | Internal Motor: 16 cc |
| Forward Ground Speed | 8.5 mph (52") 10 mph (61") |
| Reverse Ground Speed | 5 mph |
| Parking Brake | Foot-operated pedal |
| DECK | |
| Cutting Widths | 52" and 61" |
| Type | Hero Cutter Deck |
| Cutting Height | 1.5" to 5" in .25" increments |
| Deck Lift | Foot-operated pedal |
| Construction | Dual-plate cutter deck constructed of 2 steel plates. Reinforcement plate at cutter deck spindles. |
| Spindles | Aluminum housing with sealed ball bearings. |
| Blade Engagement | Ogura GT2 (108 ft lb) Adjustable air-gap for extended life. |
Accessories and Attachments
2-BAG SPINDLE DRIVEN GRASS CATCHER
WHY SPEND HOURS MOWING, RAKING AND MOVING DEBRIS WHEN YOU CAN DO IT ALL IN ONE EASY STEP?
The Scag® 2-Bag Spindle Driven Grass Catcher (GC-2B) for the Scag Patriot™ allows you to quickly and conveniently collect grass clippings and leaves, delivering a picture-perfect, groomed lawn on all Scag Patriot mowers.
With a 7-bushel capacity and a 6″ discharge tube, this is a serious debris-catching system. Contact your Scag Dealer today to get your hands on this time- and labor-saving tool.
2-BAG GRASS CATCHER
COMMERCIAL-GRADE FABRIC BAGS
The Scag® 2-Bag Grass Catcher allows you to quickly and conveniently collect grass clippings and leaves, delivering a picture-perfect, groomed lawn on all Scag Liberty® Z, Freedom Z® and Patriot™ mowers.
With a 7-bushel capacity and an 8″ discharge tube, this is a serious debris-catching system. Contact your Scag Dealer today to get your hands on this time- and labor-saving tool.
Fabric Bag Grass Catcher
HURRICANE MULCH SYSTEM
TAKE MULCHING TO A NEW LEVEL
The Hurricane Mulch System offers the same benefits of the Hurricane Plus™ Mulch System. Available on the following machines:
All Patriot™ decks.
All Freedom Z® decks.
All Liberty® Z decks.
36″ V-Ride™ II deck.
36″ SWZ Hydro-Drive deck.
All SWZT Hydro-Drive decks.
Mulch Plate
TIGER STRIPING AND LAWN PATTERN SYSTEMS
TAKE YOUR LAWN TO THE NEXT LEVEL
The patented Scag® Tiger Striper Lawn Striping System is the ultimate way to enhance the striping ability of your Scag. This lawn striper has unique features that allow you to turn the striping on and off, and remove the entire roller system without tools by pulling two “quick pins.” It is spring-loaded so it applies downward pressure onto the grass. This further enhances the stripe and allows the roller to contour to uneven terrain better than standard fixed rollers, even at high mowing and transport speeds.
Learn How Lawn Striping Works and How Lawn Patterns Are Made!
The entire lawn-striping system mounts behind the rear drive tires. The advantage to mounting the roller at the rear is that it is the last thing to contact the grass. The tires and cutter deck pass over the grass and as a final step, the roller intensifies and evens out the stripe.
*Tiger Striper shown is for Turf Tiger™ II, Cheetah II™ and Tiger Cat® II. Widths of the roller assembly and number of rollers will vary with mower model.
Light Kit
Trailer Hitch
Chrome Wheel Covers
Flat-Free Caster Tire
Blade Buddy
