Towmaster Trailers T-24T
Double tap to zoom

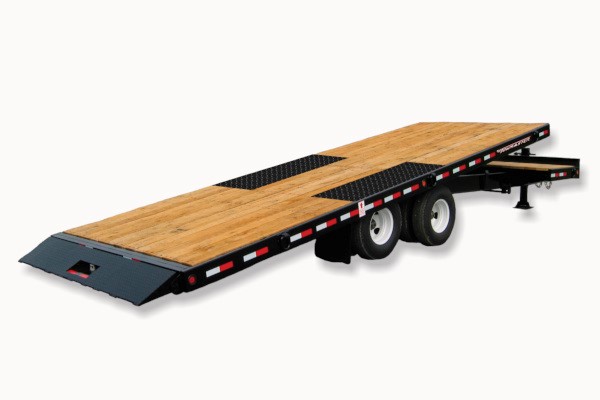

Deck-Over Tilt T-24T
The Towmaster® deck-over tilt trailers offer convenience and durability. There are no ramps to hassle with, simply tilt the deck, drive on or off and level the deck back down. It features our patented automatic kick-out ramp that doubles as an under-ride protection bumper. The tilt deck trailer features a single-lever twin-latch system, stationary forward deck, Hutchens® suspension and adjustable hitch. A deck cushion cylinder eases the deck back into transport position and prevents equipment from slamming the deck down. - Less
The Towmaster® deck-over tilt trailers offer convenience and durability. There are no ramps to hassle with, simply tilt the deck, drive on or off and level the deck back down. It features our patented automatic kick-out ramp that doubles as an under-ride protection bumper. The tilt deck trailer features a single-lever ... + Read More
-
Get a Quote
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
-
Request Brochure
Request Brochure
Fields with asterisks* are required.
-
Send to a Friend
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
-
Payment Calculator
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
-
Share
Features
Standard Features:
- Pintle hitch (adjustable height)
- 2” nominal white oak wood deck
- I-beam frame/tongue (formed)
- 3″ Jr-Ibeam Crossmembers
- 36” deck height (empty)
- 102” deck width
- 4′ Stationary deck
- Tilt deck cushion cylinder
- Electric or Air brakes
- Slipper spring suspension
- Auto kick-out ramp/under-ride protection
- Single-lever twin-latch locking system
- LED lights and sealed wiring
Options:
- Gooseneck hitch
- Additional stationary deck length
- Additional tie-downs
- Spare tire and wheel mount
- Spare tire and wheel
- Color options: Construction Yellow, Equipment Red, Equipment Blue, Equipment Charcoal
- Galvanizing
Specs
| Model | T-24T |
| Capacity (pounds) | 24,000 |
| GVWR (pounds) | 32,690 |
| GAWR (pounds) | 24,000 |
| Avg. Weight (pounds) | 8,690 |
| Load Width (in) | 102" |
| Deck Height (in) unloaded | 36" |
| Std. Hitch Size (in) | 3" |
| Tongue/Gooseneck Length (ft) | 5'-2" |
| Safety Chain | 1/2 Gr. 70 |
| Parking Jack | 12K |
| Bolted-on Parking Jack | Y |
| Main Beam | W10x17 Beam |
| Deck Type | Deck-Over Tilt |
| Deck Safety Lip | N |
| Deck Material | White Oak |
| Added Stationary Deck | 4'-0" |
| Ramp Size (ft x in) | N/A |
| Load Angle (degrees) | 10 |
| Dump Angle | N/A |
| Beavertail | N/A |
| Ramp Hold-Up | N/A |
| Ramp Spring Assist (off deck) | N/A |
| Ramp Spring Assist (off ground) | N/A |
| Tie Downs | D-ring |
| No. of Tie Downs | 8 |
| Axle Capacity | 12K |
| No. of Axles | 2 |
| Axle Spread (in) | 49" |
| Hubs | Oil Bath |
| Brake Size | 12.25" x 5" |
| Electric Brakes | Std. |
| Air Brakes | O |
| Wheels (size) | 16" |
| Wheel Bolt Pattern | 8-bolt |
| Tires | 235/85Rx16 |
| Tire Load Rating | E |
| Lights | LED |
