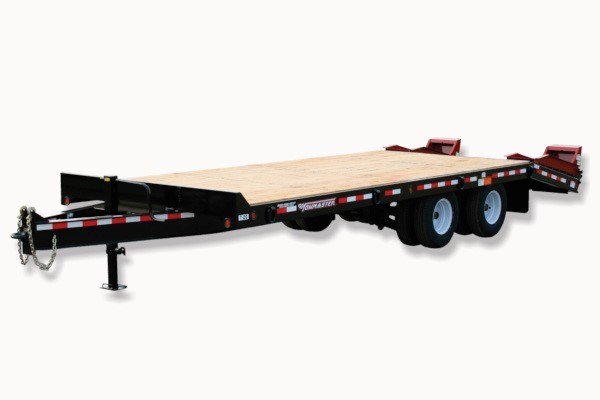

Towmaster Trailers T-20LP

Standard Features:

• Adjustable height hitch
• 3” pintle ring
• One-piece cold-formed frame rails
• Integrated storage tray with lockable lid
• 12K bolt-on side-wind drop-leg jack
• Battery break-away kit with tow charger & test light
• 7-pole round electric plug
• Safety chains with hooks
• 20 ft. deck length
• 102” load width
• 34” deck height (T-20/T-24) (fully loaded)
• 32” deck height (T-20LP/T-24LP) (fully loaded)
•  8” I-beam main frame (T-20LP/T-24LP); 10” I-beam main frame (T-20/T-24)
• 3” Jr. I-beam crossmembers, 80,000 psi
• 2” nominal white oak wood deck
• D-ring tie-downs (4 per side)
• 5 ft. steel angle-iron beavertail
• Wood protectors
• 21” x 5’-0” channel sides, cleated ladder style
• Two-way spring-assist ramps
• Hutchens 9700 adjustable suspension
• 10K axles (T-20/T-20LP); 12K axles (T-24/T-24LP)
• Tires – 235/85R16, load range F, 12-ply
• 16” wheels, 8-bolt
• Electric or Air brakes (Air has sensors on 1 axle, 2S/1M)
• Full ABS on air brakes
• Oil bath hubs
• Rubber grommet mounted LED lights
• Sealed modular wiring
• Weatherproof registration holder
• Two-component polyurethane primer and paint
• Trailer color: Equipment Black
• Ramp color: Equipment Red

Options:

• Gooseneck
• 25K two-speed parking jack
• Dual parking jacks
• Additional deck length
• Additional tie downs
• Rub rail with stake pockets
• 12K electric winch
• Spare tire and wheel mount
• Spare tire and wheel
• Tire upgrade (load range G)
• Double-break beavertail
• Several beavertail options
• Color Options: Construction Yellow, Equipment Red, Blue, Charcoal
• Galvanizing
