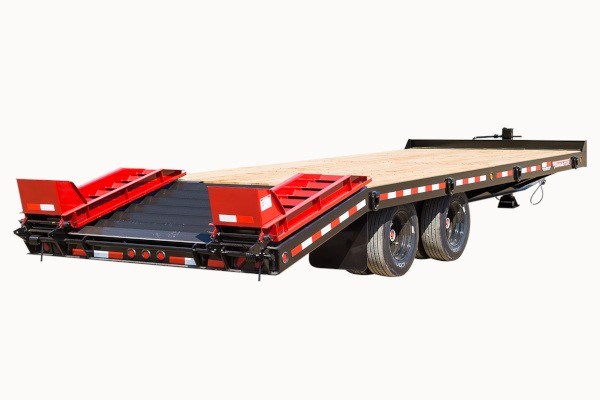

Towmaster Trailers T-40LP

New Equipment / Trailers / Deck-Over / T-40LP

Double tap to zoom

Standard Features:

Options:

Dual parking jacks
Additional deck length
Additional tie-downs
Rub rail with stake pockets
12K electric winch
Spare tire and wheel mount
Spare tire and wheel
Tire upgrade (load range H)
Double-break beavertail (T-40 only)
Several beavertail options
Color options: Construction Yellow, Equipment Red, Equipment Blue, Equipment Charcoal
Galvanizing

Model	T-40LP
Capacity (pounds)	40,000
GVWR (pounds)	48,600
GAWR (pounds)	45,000
Avg. Weight (pounds)	8,600
Load Width (in)	102"
Deck Height (in) unloaded	34"
Std. Hitch Size (in)	3"
Tongue/Gooseneck Length (ft)	5'-2"
Safety Chain	1/2 Gr. 80
Parking Jack	25K
Bolted-on Parking Jack	Y
Main Beam	W10x26 Beam
Deck Type	Deck-Over
Deck Safety Lip	N
Deck Material	White Oak
Added Stationary Deck	N/A
Ramp Size (ft x in)	5'-0"x21"
Load Angle (degrees)	18
Dump Angle	N/A
Beavertail	5'-0"
Ramp Hold-Up	N/A
Ramp Spring Assist (off deck)	Std.
Ramp Spring Assist (off ground)	Std.
Tie Downs	D-ring
No. of Tie Downs	8
Axle Capacity	22.5K
No. of Axles	2
Axle Spread (in)	49"
Hubs	Oil Bath
Brake Size	12.25"x7.5"
Electric Brakes	N/A
Air Brakes	Std.
Wheels (size)	17.5"
Wheel Bolt Pattern	8-bolt
Tires	235/75Rx17.5
Tire Load Rating	H
Lights	LED

Deck-Over T-40LP
