Towmaster Trailers T-12D
Double tap to zoom

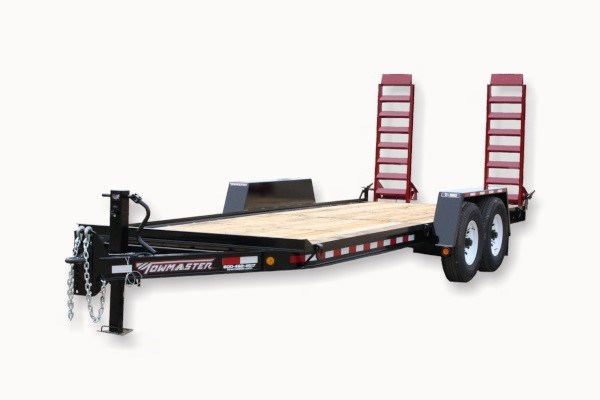

Drop-Deck T-12D
The Towmaster® T-series drop-deck trailer is designed for hauling small to mid-sized equipment. Built on our famous I-beam main frame, this model features an oak wood deck with 2-inch lip, Dexter® Torflex® rubber torsion axles for a smooth ride, and bolt-on parking jack for easy maintenance. Our tongue and main frame is one-piece cold-formed for superior strength and tied together with 3-inch I-beam cross-members. Spring-assist ramps are standard and the ramps are held in the upright position by our patented Auto-Latch® ramp hold-ups. - Less
The Towmaster® T-series drop-deck trailer is designed for hauling small to mid-sized equipment. Built on our famous I-beam main frame, this model features an oak wood deck with 2-inch lip, Dexter® Torflex® rubber torsion axles for a smooth ride, and bolt-on parking jack for easy maintenance. Our tongue and main frame i... + Read More
Features
Standard Features:
- Pintle hitch (adjustable height)
- Battery break-away with tow charger
- 2” nominal white oak wood deck
- 6” I-beam frame/tongue (formed)
- 3″ Jr-Ibeam Crossmembers
- 24” deck height (empty)
- 82” between fenders
- Rubber torsion axles
- Heavy-duty Towmaster fenders
- Ladder-style ramps
- Auto-Latch ramp hold-ups
- LED lights
Options:
- Hydraulic surge brakes
- 3” pintle ring or 2-5/16” ball coupler
- Gooseneck hitch
- 6-pole round electrical plug
- Storage tray lid
- Pallet fork holders
- 8K electric winch
- Additional tie-downs
- 3 ft. beavertail (comes with 4 ft. ramps)
- Spare tire and wheel mount
- Spare tire and wheel
- Tire upgrades available on select models
- Solid-bar ramp hold up
- Several ramp options available
- Color options: Construction Yellow, Equipment Red, Blue, Charcoal
- Galvanizing
Specs
| Specification | T-12D |
| Capacity (pounds) | 12,000 |
| GVWR (pounds) | 14,900 |
| GAWR (pounds) | 12,000 |
| Avg. Weight (pounds) | 2,900 |
| Load Width (in) | 82" |
| Deck Height (in) unloaded | 22" |
| Std. Hitch Size (in) | 2.5" |
| Tongue/Gooseneck Length (ft) | 5'-0" |
| Safety Chain | 3/8 Gr. 43 |
| Parking Jack | 12K |
| Bolted-on Parking Jack | Y |
| Main Beam | 6" I-Beam |
| Deck Type | Drop-Deck |
| Deck Safety Lip | Y |
| Deck Material | White Oak |
| Added Stationary Deck | N/A |
| Ramp Size (ft x in) | 5'-0"x18" |
| Load Angle (degrees) | 17 |
| Dump Angle | N/A |
| Beavertail | O |
| Ramp Hold-Up | Auto-Latch |
| Ramp Spring Assist (off deck) | N/A |
| Ramp Spring Assist (off ground) | Std. |
| Tie Downs | D-rings |
| No. of Tie Downs | 8 |
| Axle Capacity | 7K |
| No. of Axles | 2 |
| Axle Spread (in) | 34" |
| Hubs | EZ-Lube |
| Brake Size | 12" x 2" |
| Electric Brakes | Std. |
| Air Brakes | N/A |
| Wheels (size) | 16" |
| Wheel Bolt Pattern | 8-bolt |
| Tires | 235/85Rx16 |
| Tire Load Rating | E |
| Lights | LED |
| Full Warranty | 1 Year |
| Frame Warranty | 10 Year |
