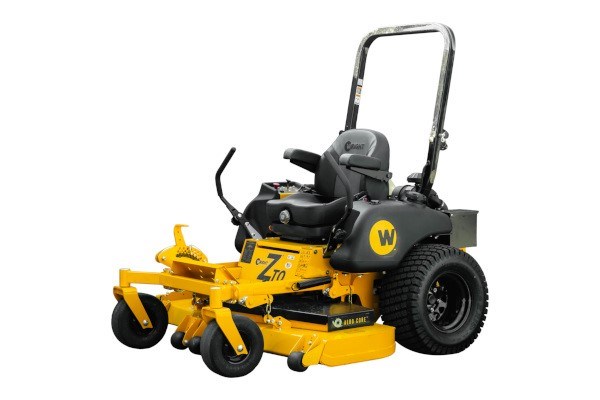

Wright ZTO 52 FX730E

ZTO 52 FX730E
DURABLE & COMFORTABLE.
The ZTO provides a range of medium sized options, ideal for any job! Equipped with integrated transmissions and mid-sized engines. Hydro-Gear® ZT 3400 Transmission Efficient power delivery season after season Commercial Grade Engines Reliable power for the most productive crews
Features
- Integrated Parking Brake
Safely park with no hassle - simply place controls in outward position. - Comfortable Seat
Plush, comfortable ride - 24” Tires (on 52” and 61”)
High traction for hills and wet conditions - Control Area
- Easy To Access Transmission, Engine, and Control systems
- Flexible Chute Deflector
Mow around objects without fear of damaging property. - Simple construction, durable and easy to work on!
- Generously bolstered seat.
- Deck lift system uses stainless steel shafting and synthetic bushings, providing many years of service free durability.
- Dual Deck belts reduce wear on the angled belt drive and insure that all idlers are on the slack side of the belt, significantly extending the life of the belt.
- Powered Collection system available in two or three bag configurations.
- Dual Fuel tanks provide 13.5 gallons of fuel capacity, much more than comparable machines in this class.
AERO CORE DECK
The ZTO comes with one of the most advanced cutting decks available today, the revolutionary Wright AERO CORE™ deck. Every inch of the deck is designed to deliver unparalleled cut quality, turn-on-a-dime maneuverability and the reliability you expect from Wright.
- Heavy-Duty 7-guage steel with reinforced edges
- Compact size allows for a shorter & lighter mower
MODEL | ZTO 52 FX730E |
GENERAL | |
SKU | WZTO52SFX730E1B |
Category | Mid-Mount |
Family | ZTO |
Class | Heavy-duty |
Generation | Gen 1 |
MSRP | 8920 |
CONTROLS | |
Operator Control Type | Over the lap controls |
Hour Meter | Digital |
ENGINE | |
Vendor | Kawasaki |
Model | FX730E |
Start Type | Electric |
Horsepower | 23.5 HP |
PRODUCTIVITY | |
Forward Speed | 10.5 MPH |
Reverse Speed | 4 MPH |
Fuel Capacity | 13.5 GAL |
Max Acres Per Hour | 5.62 |
DRIVE SYSTEM | |
Type | Hydro |
Motor | NA |
Pump | NA |
Transaxle | Hydro-Gear ZT3400 |
Transmission | NA |
DECK | |
Deck Size | 52 IN |
Deck Type | Floating-side discharge |
Configuration | Aero Core |
Lift System | Foot Pedal Operated |
Blade Quantity | 3 |
Blade Length | 18 IN |
Deck Min. Cut Height | 1.5 IN |
Deck Max. Cut Height | 5.5 IN |
Steel Gauge | 7 Gauge |
Spindle Type | Ductile Iron |
DIMENSIONS | |
Weight | 1102 LB |
Length | 78.00 IN |
Width w/ Deflector Down | 65.00 IN |
Width w/ Deflector Up | 53.00 IN |
CASTER WHEELS | |
Rim Diameter | 6.00 IN |
Tire Diameter | 13.00 IN |
Tire Width | 5.00 IN |
REAR WHEELS | |
Rim Diameter | 12.00 IN |
Tire Diameter | 24.00 IN |
Tire Width | 12.00 IN |
